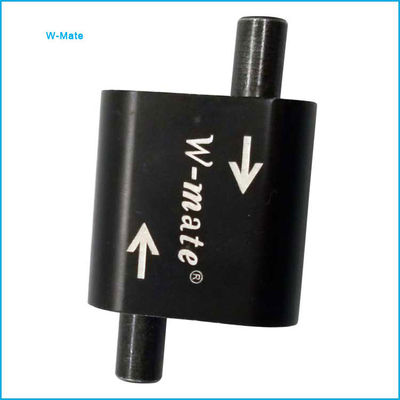

M12 Black Self Gripping Cable Looping Gripper with 1*7 and 1*19 Steel Wire Rope
Dettagli:
| Luogo di origine: | Guangdong, Cina |
| Marca: | W-mate |
| Certificazione: | ROHS |
| Numero di modello: | Agganciatore regolabile per cavi |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 100 |
|---|---|
| Prezzo: | $0.80-0.85 |
|
Informazioni dettagliate |
|||
| Materiale: | Rame, ottone | Tipo: | Clip per fune metallica |
|---|---|---|---|
| Colore: | Nickel/cromo/nero/bianco | Costruzione del cavo: | 1*7,7*7,1*19,7*19 |
| Lunghezza del filo: | 10,00 mm | Diametro del cavo: | Da 0,8 mm a 1,2 mm |
| Carico di lavoro sicuro: | 150,00 kg | Mini carico di rottura: | 12,5 kg a 500 kg |
| Dimensione (L*W*H): | 15*15*8,5 a 42*42*22 | Moq: | 100 pezzi |
| Disponibilità del campione: | campione fornire | Personalizzazione: | Materiale, colore, dimensione |
| Tempi di consegna: | 15 giorni | Metodi di spedizione: | Express, Sea Freight, Agent |
| tasso difettoso: | Meno dello 0,2% | ||
| Evidenziare: | M12 Cable Looping Gripper,1*7 Steel Wire Rope,1*19 Looping Gripper |
||
Descrizione di prodotto
Black Loop Maker Self Gripping Adjustable M12 Double Sides Steel Wire Rope Cable Looping Gripper Aluminum
Technical Specifications
| Cable Diameter | Mini Breaking Load | Safe Work Load | Size (L*W*H) |
|---|---|---|---|
| φ0.8mm | 12.5kg | 2.5kg | 15*15*8.5 |
| φ1.0mm | 50kg | 10kg | |
| φ1.2mm | 80kg | 16kg | 20*18*10 |
| φ1.5mm | 130kg | 26kg | |
| φ1.8mm | 180kg | 36kg | 25*25*12 |
| φ2.0mm | 200kg | 40kg | |
| φ2.5mm | 300kg | 60kg | 30*30*15 |
| φ3.0mm | 400kg | 80kg | |
| φ4.0mm | 450kg | 90kg | 42*42*22 |
| φ5.0mm | 500kg | 100kg |
Frequently Asked Questions
Why choose our products?
- Excellent R&D capability with advanced processing and testing equipment (40+ machines including cutting, welding, and casting machines)
- Comprehensive inspection equipment
- Customizable specifications including material, color, and dimensions
- Professional QA team
- Superior after-sales services
How do we design ceiling suspension cables/kits?
We consider multiple factors including workload, safety, abrasion resistance, environment, cycle life, flexibility, and cost when designing ceiling suspension cables/kits based on your specific application requirements.
Quality and cost control
We implement four-stage inspections before and after production, with complete QC inspection processes and solutions to ensure quality while controlling costs.
How to place an order?
Please provide complete specifications including: Material, Diameter, Construction, Coating, Length, Packing, Quantity, and any special Remarks.
Production lead time
Standard lead time is 15 days, depending on order size. We can expedite urgent orders upon request.
Shipping methods and timelines
- Express (DHL, UPS, TNT, FEDEX): 3-5 days delivery
- Sea Freight: We will provide quotes based on your destination port
- Client-designated agent: Provide contact details and we'll arrange delivery
Quality guarantee and defective products
Our strict quality control maintains a defective rate below 0.2%. During the guarantee period, we replace small quantities with new orders. For defective batches, we repair and resend or discuss recall solutions as needed.
Vuoi conoscere maggiori dettagli su questo prodotto
